Daiwa Coax Switches
|
| Click to Enlarge |
Part Number |
Desc |
Price |
Buy |
 |

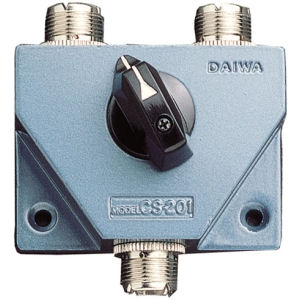

CS-201A |
Daiwa Coax switch
- Frequency Range (up to): 600MHz
- Power Rating: 2.5 kW PEP 1 kW CW
- VSWR: below 1.2:1
- Insertion Loss: less than 0.12 dB
- Isolation: 60 dB 600 MHz
- Connector: SO-239 (UHF)
- Output Port: 2
|
$38.00 |
|
 |
CS-401 |
Daiwa Coax switch
- Frequency Range (up to): 500MHz
- Power Rating: 2.5 kW PEP 1 kW CW
- VSWR: below 1.2:1
- Insertion Loss: less than 0.2 dB
- Isolation: 60 dB 200 MHz
- Connector: SO-239 (UHF)
- Output Port: 4
|
$139.00 |
|
 |
CS-201GII |
Daiwa Coax switch
- Frequency Range (up to): 2 GHz
- Power Rating: 1.5 kW CW (up to 30 MHz), 250 W CW (up to 1 GHz),
150 W CW (up to 2 GHz)
- VSWR: below 1:1.3 at 1.3 GHz
- Insertion Loss: less than 1.2 dB at 1.2 GHz
- Isolation: 50 dB 1 GHz
- Connector: Gold Plated N-Type
- Output Port: 2
|
$57.00 |
|
