Heil Microphones

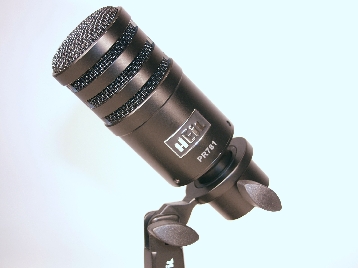

 Heil PR-781: Professional quality dynamic cardiod microphone The PR-781 is the successor to the very popular PR-780 but in a more compact enclosure that is eye-catching and downright beautiful. The PR-781 gives you a full-bodied tone quality, with crisp high-frequency articulation, made famous by the original PR-780. The PR-781 comes with the 5/8-27 mount.

Requires CC1-XLR Cable

Options: CB-1-PTT base stand, PL-2T, HB-1 or SB-2 boom, FS-2 foot switch, FS-3 foot switch, HS-2 hand switch PRSMx shock mount

Specifications:
  • Generating Element: Heil PR Dynamic
  • Diaphragm: Low mass aluminum
  • Output Level: -55 dB
  • Impedance: 600 ohms nominal
  • Polar Patter: Cardiod End Fire, uniform discrimination
  • Case Material: Steel
  • Finish: Black Satin Epoxy
PR-781 Microphone
Part Number Desc Price Buy
PR-781 Heil professional quality dynamic cardioid microphone $174.00
PR-781G Heil professional quality dynamic cardioid microphone, gold screen $174.00




 The popular HM-10 had been redesigned with our new HC-5x and HC-4x elements mounted on an acoustically tuned chamber to reproduce the popular narrow HC-4 response for DX work and a full smooth response of the HC-5 elements. This allows users to operate a full range mic for everyday rag chew and instantly switch to a narrow punchy DX element for DX work or to just punch through pileups. One mic that covers all your needs in communications.

 The new HC-5X (wide) is ideal for every day, articulate speech audio anywhere you need good, full-range audio. A +6 dB rise at 2,500 Hz, the frequency right in the middle of the human voice pattern, brings great articulation to your signal. The low-end response rolls off at 300 Hz. The -3 dB point of the HC-5X is set at 300 Hz to 8 kHz with the tuned peak being +6 dB at 2,500 Hz.

 The new HC-4X (narrow) element has been designed for serious DXers. It places a +10 dB rise at 2,500 Hz, which is right in the middle of the human speech range. The result is not a pretty sound, but it cuts through. The low-end response rolls off at 600 Hz. The -3 dB point of the HC-4X is set at 600 Hz to 6 kHz with the tuned peak being +10 dB at 2,500 Hz.

 The HM-10 XD microphone comes equipped with a microphone clip and a foam windscreen.

Requires CC-1 Cable

Options: CB-PTT base stand with PTT,
PL-2T, HB-1,or SB-2 boom, SM-1 shock mount, FS-2 foot switch, FS-3 foot switch, HS-2 hand switch


HM-10-XD Microphone
Part Number Desc Price Buy
HM-10-XD Heil Dual Element Microphone, with HC-5X wide element and HC-4X narrow DX element
Closeout Pricing - Limited Quantities Available
$109.00




 Heil Gold Elite microphone is designed and crafted specifically for amateur radio communications. It contains two distinctly different high performance dynamic elements that are available at the flip of a switch to meet the different types of communications.

 The WIDE position has the HEIL Elite full range element producing smooth articulate 60Hz - 16 kHz audio with the traditional Heil +4 dB peak centered at 2 kHz. This gives the new Gold Elite excellent voice articulation along with its ‘big bottom’ low end that is so important for producing a well balanced, studio quality SSB signal. The NARROW position features the new HC-5.1 dynamic element.

 The GM-V (Vintage) is a unique, innovative microphone renowned for its gorgeous audio production. It's crystal clear response made it an instant best-seller, and it is the microphone of choice in thousands of Ham shacks around the world today. The GM V Microphone has been designed for full-range articulate SSB audio. Specifically when used with a high impedance input, usually tube type vintage equipment (Collins, Central Electronics, Hallicrafters, etc.)

 The Gold Elite microphone comes to you with a foam windscreen and a 5/8"-27 microphone clip that is designed for our booms and desk stands.

Requires CC-1 Cable

Options: CB-1-PTT base stand with PTT,
PL-2T, HB-1,or SB-2 boom, SM-1 shock mount, FS-2 foot switch, FS-3 foot switch, HS-2 hand switch

Gold Elite Microphone
Part Number Desc Price Buy
GM-Elite Heil Gold Elite series dual element dynamic microphone $129.00
GM-V Heil Vintage series microphone for high impedance input radios (Collins, Central Electronics, Hallicrafters, etc.)
Allow 7-10 days to ship
$139.00




 Heil HM-12 microphone is designed specifically for amateur radio communications. The high output full range ‘Genesis’ dynamic element is designed to work with just about every amateur radio low impedance transmitter. The element is mounted in a unique internal shock mount and exhibits nearly -35 dB of rear rejection, which reduces background and ambient noise from the transmitted signal.

 The Heil HM-12 exhibits a very natural audio response from 80Hz - 14 kHz. The traditional Heil +4 dB peak centered at 2 kHz gives the new HM-12 excellent voice articulation balanced with clean, clear low-end response producing a high quality AM, FM or SSB signal.

 The HM-12 microphone has an internal foam windscreen and includes a 5/8"-27 microphone clip that is designed for our booms and desk stands.

Requires CC-1 Cable

Options: CB-1-PTT base stand with PTT,
HB-1,or SB-2 boom, SM-1 shock mount, FS-2 foot switch, FS-3 foot switch, HS-2 hand switch

HM-12 Microphone
Part Number Desc Price Buy
HM-12 Heil "Genesis" series dynamic microphone $74.00




 Heil HMM: Hand Microphone. The unique design of the HMM eliminates the hollow, clam shell sound of hand mics of the past. This has been achieved by designing an open grill on top of the microphone case which detunes the internal hollow resonance of the housing.

 The HMM is offered as the HMM and the HMM-iC. The HMM is equipped with a full range dynamic microphone element with great articulation. The HMM-iC is equipped with our iC electret element. The flexible, but sturdy, coil cable terminates to a 1/8" male for the microphone and a ¼" male for PTT control. It is compatible with all of the Heil AD-1 adapters.

HMM Requires AD-1 Adapter
HMM-iC requires AD-1iC or AD-1iCM Adapter

HMM Spec Sheet


HMM Hand Microphone
Part Number Desc Price Buy
HMM Heil professional quality dynamic hand microphone
Allow 7-10 days to ship
$79.95
HMM-iC Heil professional quality hand microphone with iC element for early ICOM radios and IC-7000/7100, requires AD-1iC or AD-1iCM adapter
Allow 7-10 days to ship
$79.95




 Heil iCM Microphone (for Icom only): The Heil iCM is a high-performance microphone that was designed specifically for use with Icom radios in close collaboration with Icom’s engineering team. The iCM features a high-quality condenser element that exhibits a broad frequency response (35 Hz to 12 kHz) and high output that perfectly matches the internal gain of Icom radios.

Ideal for hand-held use, the iCM features a push-to-talk switch mounted on the body. The iCM is hardwired to an 8-foot length of Heilwire cable that terminates in an 8-pin Foster connector wired for the Icom transceivers. A 1/4in inline phone jack accepts PTT input from a Heil FS-2 or FS-3 foot switch or Heil HS-2 hand switch. Frequency Response: 35Hz - 12kHz

The iCM is available in matte black/gold grill or silver finishes, and includes a foam windscreen and a microphone clip compatible with Heil Sound base stands and booms.

Note: The iCM is designed for Icom transceivers only.

Will Not work with IC-720, IC-730 or IC-740


Options: CB-1-PTT base stand with PTT,
PL-2T, HB-1 or SB-2 boom, SM-1 shock mount, FS-2 foot switch, FS-3 foot switch, HS-2 hand switch


iCM Microphone
Part Number Desc Price Buy
iCM-BG Heil microphone for older ICOM radios, Black and Gold
Allow 7-10 days to ship
115.00
iCM Heil microphone for older ICOM radios, Silver 115.00




 The Heil PR-77D: is a professional quality dynamic microphone for use in amateur radio and pro applications. It is perfect for any application that requires a smooth, flat response over a wide frequency range, excellent transient response, great speech articulation, and low intermodulation distortion (IMD).

 The PR-77D achieves its exceptional performance via a large, 1-jnch, low-mass voice coil encompassed by a powerful magnet structure using a mixture of neodymium, iron and boron. Special attention has been paid to the phasing plug assembly to provide exceptional 180-degree, off-axis rear rejection of over -40 dB. Simultaneously, the front pattern allows the user to move about freely in front of the element with no change in response.

 Unique to the PR-77D is a two-position switch allowing the user to select optimal response frequency characteristics between Voice and Music applications. The Voice position rolls the audio off at 120 Hz at -6 dB per octave, whereas the Music position removes the filter and uses the entire audio spectrum of 60 Hz to 16 kHz.

 The PR-77D is designed to be used exclusively with booms or bases, and has standard 5/8"-27 microphone stand threads. Requires CC1-XLR-x cable for ham radio use.

Options: PL-2T or SB-2 boom, CB-1-PTT Desk Stand

The Heil Sound PR-77D Microphone
Part Number Desc Price Buy
PR-77D Professional quality dynamic microphone, black Add to cart to see your price $$$.00
PR-77DP Professional quality dynamic microphone, purple Add to cart to see your price $$$.00




 Heil PR-30: Professional Dynamic Cardioid Studio Microphone. From the Professional division of Heil Sound, Ltd. The PR-30 is a professional quality dynamic cardioid microphone designed for commercial broadcast, recording and live sound reinforcement applications which require a smooth flat response over a wide frequency response. The PR-30 exhibits gorgeous natural speech articulation without having to apply heavy electronic equalization. Truly one of the most natural and pleasant sounding dynamic microphones, ever.

 The cardioid pattern offers the greatest rejection at 180 degrees off axis which is directly behind the microphone and creates virtually no off-axis coloration while providing the greatest possible rejection of unwanted audio.

 Comes with the 5/8"-27 mount assembly.

Requires CC1-XLR Cable

Options: CB-1-PTT base stand with PTT,
PL-2T, HB-1 or SB-2 boom, PRSMx shock mount FS-2 foot switch, FS-3 foot switch, HS-2 hand switch


PR-30 Microphone
Part Number Desc Price Buy
PR-30 Heil professional dynamic microphone, Champagne finish -
Allow 7-10 days for shipment
Add to cart to see your price
$$$.00
PR-30-B Heil professional dynamic microphone, matte black finish -
Allow 7-10 days for shipment
Add to cart to see your price
$$$.00




 The Heil USBQ brings professional quality, low noise microphone pre amplification complete with two band shelving equalization, on-board headphone amplifier and D/A converter in a compact, portable package.

 Not just an adapter, but a true single channel mic pre amp complete with balanced XLR input mic level, switchable phantom power, Bass and Treble controls and adjustable headphone output level. The Heil USBQ is ideal for professional recording, commercial broadcasts and communicating over the internet. No batteries, just plug into USB and enjoy.

  • Low noise pre amp with 16 bit up to 48 kHz sample rates
  • Frequency Response 20 Hz. - 20,000 kHz
  • Equalization + or - 12 dB Bass center 80 Hz, + or - 12 dB Treble center at 8 kHz
  • +48 volt Phantom switch
  • +40 dB adjustable microphone gain
  • Headphone amplifier 60 mW into 32 ohms
  • 600 ohm Input Impedance
  • 4-3/4" long, 1" diameter anodized aluminum case
  • Comes with USB cable
The Heil Sound USBQ Inline Microphone Preamp
Part Number Desc Price Buy
USBQ Inline microphone preamp $90.00




 Heil PR-40: Large Diameter Dynamic Studio Microphone. Designed for the commercial broadcast and recording studio market, the PR-40 features the new technology of the Heil DM 6 dynamic element with response down to 28 Hz. and stays perfectly flat up through 18kHz. with a beautiful mid range rise giving this new microphone gorgeous vocal articulation. It truly outperforms many of the current microphones that all use at least 30 year old technology. Gorgeous craftsmanship, high quality components and a beautiful champagne luster finish with the most articulate, natural sound from a dynamic, the PR-40 will soon become the sound industry standard.

 Specifications:

  • Dynamic generating element with Neodymium magnet structure
  • Mate Steel body, zinc die cast bottom ring
  • 28 to 18,000 Hz frequency response
  • 600 ohms balanced impedance
  • -53dB @ 1,000 Hz output level
  • Anodized champagne matte finish
 The PR-40 is shipped with the SM-3 5/8"-27 mount assembly.

Requires CC1-XLR Cable

Options: CB-1-PTT base stand with PTT,
PL-2T, HB-1 or SB-2 boom, PRSMx shock mount FS-2 foot switch FS-3 foot switch, HS-2 hand switch


The Heil Sound PR-40 Microphone
Part Number Desc Price Buy
PR-40 Large Diameter Dynamic Studio Microphone, Chapagne finish
Add to cart to see your price
$$.$$
PR-40BK Large Diameter Dynamic Studio Microphone, Black Finish
Add to cart to see your price (Allow 7-10 days to ship)
$$.$$
PR-40BG Large Diameter Dynamic Studio Microphone, Black body with gold screen
Add to cart to see your price (Allow 7-10 days to ship)
$$.$$
PR-40CH Large Diameter Dynamic Studio Microphone, Chrome Finish
Add to cart to see your price (Allow 7-10 days to ship)
$$.$$




HHGB Heritage Microphone, black with blue (allow 7-10 days to ship) 179.00




-->
 The Fin: The Heil Sound Fin utilizes the PR-20 element so popular in the professional audio realm, and it’s housed in a gorgeous high-gloss chrome-finish enclosure reminiscent of the gorgeous Heritage microphone.If phantom power* is provided to The Fin, the wind screen becomes illuminated by four imbedded LEDs, adding to the art deco appearance of this great sounding microphone. Its "Cool Factor" is without peer!

Note: The phantom power requirement for The Fin is not compatible with Icom transceivers’ voltage.

Options: PL-2T or SB-2 boom,

Model Description Price Order
FINCH Studio Microphone, Chrome finish -
Add to cart to see your price (Allow 7-10 days to ship)
$???.00
FINBK Studio Microphone, Black finish
Add to cart to see your price (Allow 7-10 days to ship)
$???.00




 Heil PR-20UT: Professional Dynamic Cardioid Studio Microphone. This is a professional quality dynamic cardioid microphone designed for commercial broadcast and recording. The PR-20UT delivers a smooth flat response over a wide frequency response. The PR-20UT has a comparable sound to the finest condenser microphone because of it's wide frequency response, excellent transient response and low IMD.

 The PR-20UT achieves it's exceptional performance by using a special magnet structure and a large aluminum 1-1/8" low mass voice coil assembly with smooth 50-18,000 Hz. frequency response. It produces a beautifully smooth audio response without the inconvenience of phantom or outside d.c. powering.

 The Heil PR-20UT professional microphone is delivered with a stainless mesh grill, foam windscreen, and a mic clip in a vinyl zippered bag.

Requires CC1-XLR Cable

Options: CB-1-PTT base stand with PTT,
PL-2T, HB-1 or SB-2 boom, SM-1 shock mount FS-2 foot switch, FS-3 foot switch, HS-2 hand switch


The Heil Sound PR-20UT Microphone
Part Number Desc Price Buy
PR-20UT Professional Dynamic Microphone Allow 7-10 days for shipment
Add to cart to see your price
$$.$$




 We carry Heil's full product line but only have the most common items listed here. If you don't see what you are looking for E-mail sales and one of our experienced staff will respond with pricing and availability.
